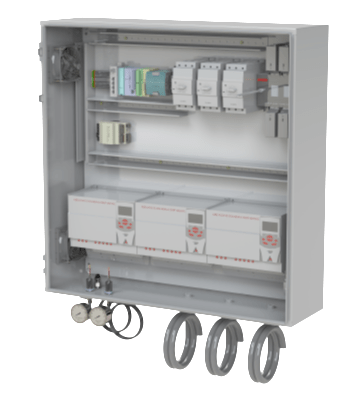

Overview
- UL 508A with 24v DC Controls
- Nema 1-3R or 4X Rated
- MMP – for all Panels
- Single Point Power Main Disconnect
- Variable Speed Drivers
- Lighting & Surge Arrestor
- Preprogrammed PLC with Ethernet (Modbus, BACnet, and more)
- 4-10 Inch Choice for LCD Color Touch Screens
- 1-Year System Warranty
- PH and ORP Control
Typical Control Features
- Measure Temperature and Control PH or ORP
- Built-In Memory Back up when Power Fails
- NEMA 4X (IP65) Wall or Panel Mount Enclosures
- -2 to 16 pH Range
- 4 to 20 mA Output
- Display 4-digit LCD 13.7 mm (0.54”)
- LCD Blue Blacklight
- RS485 Communications
Technical Design Features
- Single Point Power Main Disconnect
- Manual Motor Protector (MMP) per Motor
- VFD Controls with Programmable Set Points
- PLC with Ethernet Capability
- Low Voltage – 24 VDC Touch Safe Controls
Available Control Features
- UL508A Rated Panel
- Nema 4, Nema 4X Nema 1-12-3R Classifications Standard
- Fan-cooled Cabinet with Filtered Air and Optional AC Unit
- VFD Dedicated for each Pump Motor
- Standard 4-Inch LCD Screens with 6 or 10 inch Options Available
- Control Panels Painted in Standard Machine Grey or Equivalent
- Each Motor Protected by Individual Circuit Breakers or Fuses
- Touch-Safe 24V Controls Reduces Short and Shock in Power “On” Positions
- Lightning and Surge Protection
- VFDs Installed Inside all Panels
- Available in Single or 3-Phase Power
- Stainless Option for Outdoor Weather Locations
- Wireless and Ethernet Connection for Remote Panel Monitoring Control
